SafewazeŽ FS870 Reusable Roof Anchor for Wood or Metal Roofs

Item #FS870

The Safewaze reusable Roof Anchor is forged with durable zinc steel and should be kept on had for temporary usage on wood or metal roofs.  Features an anchor hinge design that allows the roof anchor to be nailed or screwed into position on flat to sheer roofs.

  • Install on peak or flat wood and metal decking roofs
  • Hinged construction for adjusting to different angles
  • Made from corrosion resistant plated steel

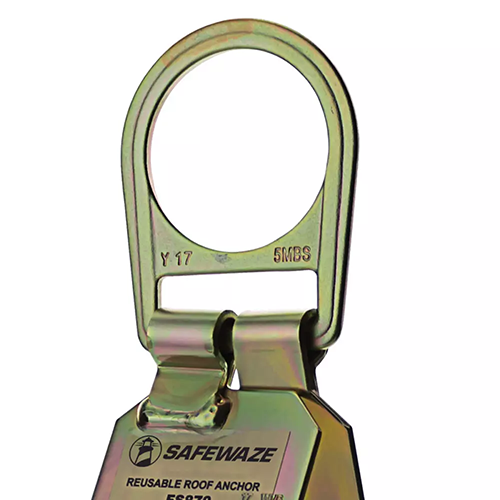

  • Includes a large D-Ring connection point
  • Does not include fasteners
  • Materials: Zinc plated steel
  • Length: 11 inches
  • Minimum Breaking Strength: 5000 lbs.
  • ANSI Weight capacity: 130-310 lbs
  • OSHA Weight capacity: Up to 420 lbs.
  • ANSI Standards: Z359.1
  • OSHA Standards: 1926.502

Download Manual

more
$21.05

Add to Cart Order Sample
Add to Favorites Add to Quote
Discounts for Bulk Orders! Contact Us! Bulk Order? Contact Us!

Description

Safewaze FS870 Extreme Reusable Roof Anchor

Reusable roof anchor designed to be used as a single anchor point for no more than one person at a time. The anchor will fit any roof pitch, wood or steel. Must use a minimum of 12 #8x2 wood screws (6 per center row each side for wood truss attachment / all holes must be used on both sides for attachment to wood sheathing only) A minimum of 10 #8 x 0.75 in (19.05 mm) long sheet metal screws per side for steel roof attachment. For use on steel roofs 24 gauge or thicker.

Features:

  • Reusable roof anchor
  • Galvanized steel

Specifications:

  • Overall Length: 11"
  • Materials: Steel Sheet
  • Weight: 2.44 lbs
  • Material Thickness:  0.14"
  • Distance (front bottom to top holes): 7.97"
  • Width of Plate: 3"

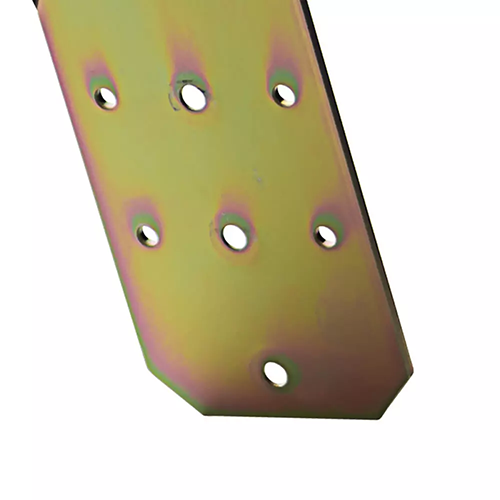

  • Number of holes: 16 per side
  • Hole Diameter: 0.19"
  • Finish: Galvanized
  • Minimum Breaking Load: 5000 lbs
  • Standards:  Meets OSHA 1926-502 - ANSI Z359.1-2007 - ANSI A10.32 2012

*Anchorages used for attachment of personal fall arrest equipment shall be independent of any anchorage being used to support or supend platforms and be capable of supporting at least 5,000 (22.2kN) pounds per employee attached.

  • Manufacturer:

    Safewaze
